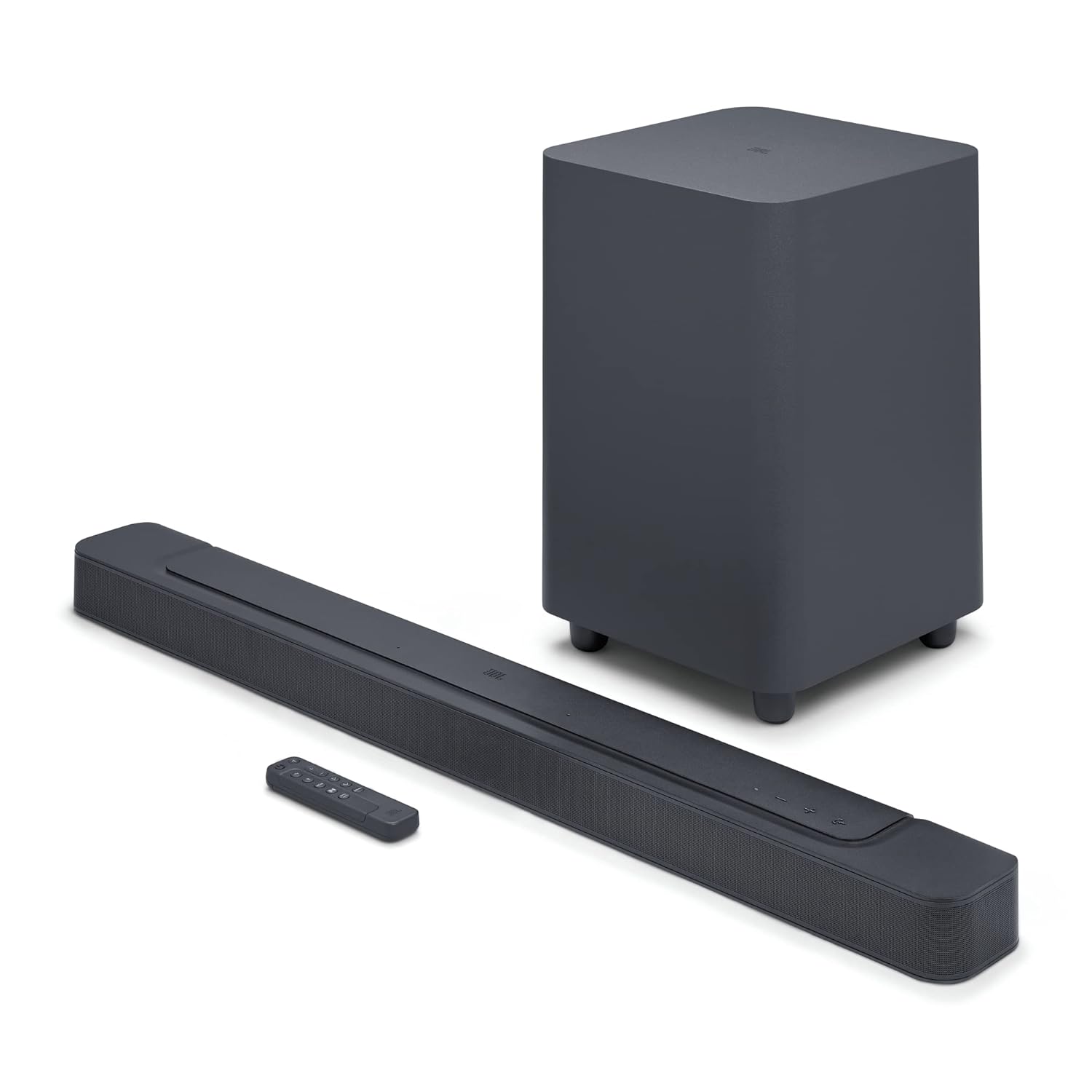

JBL BAR-500 SB with Wireless Bubwoofer

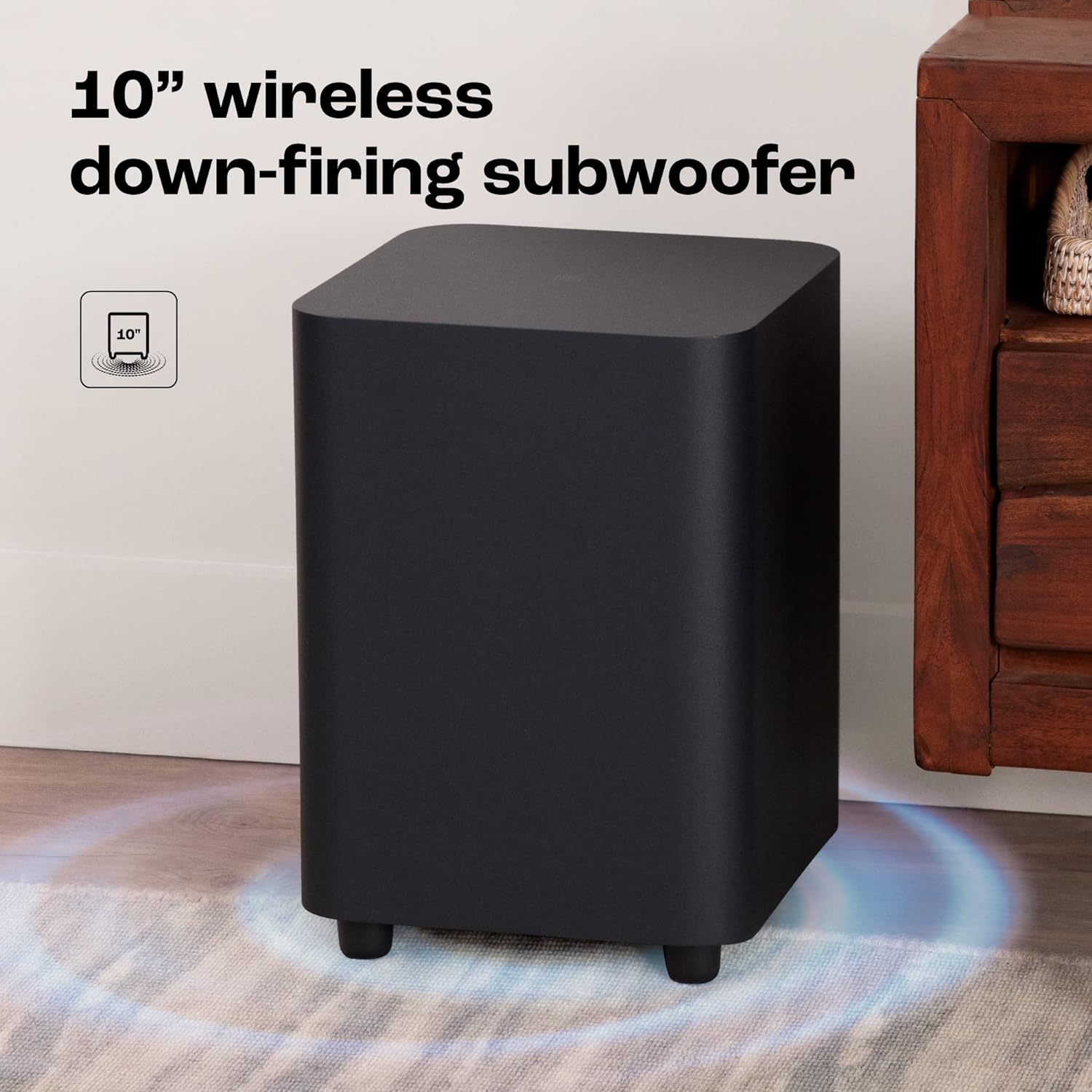

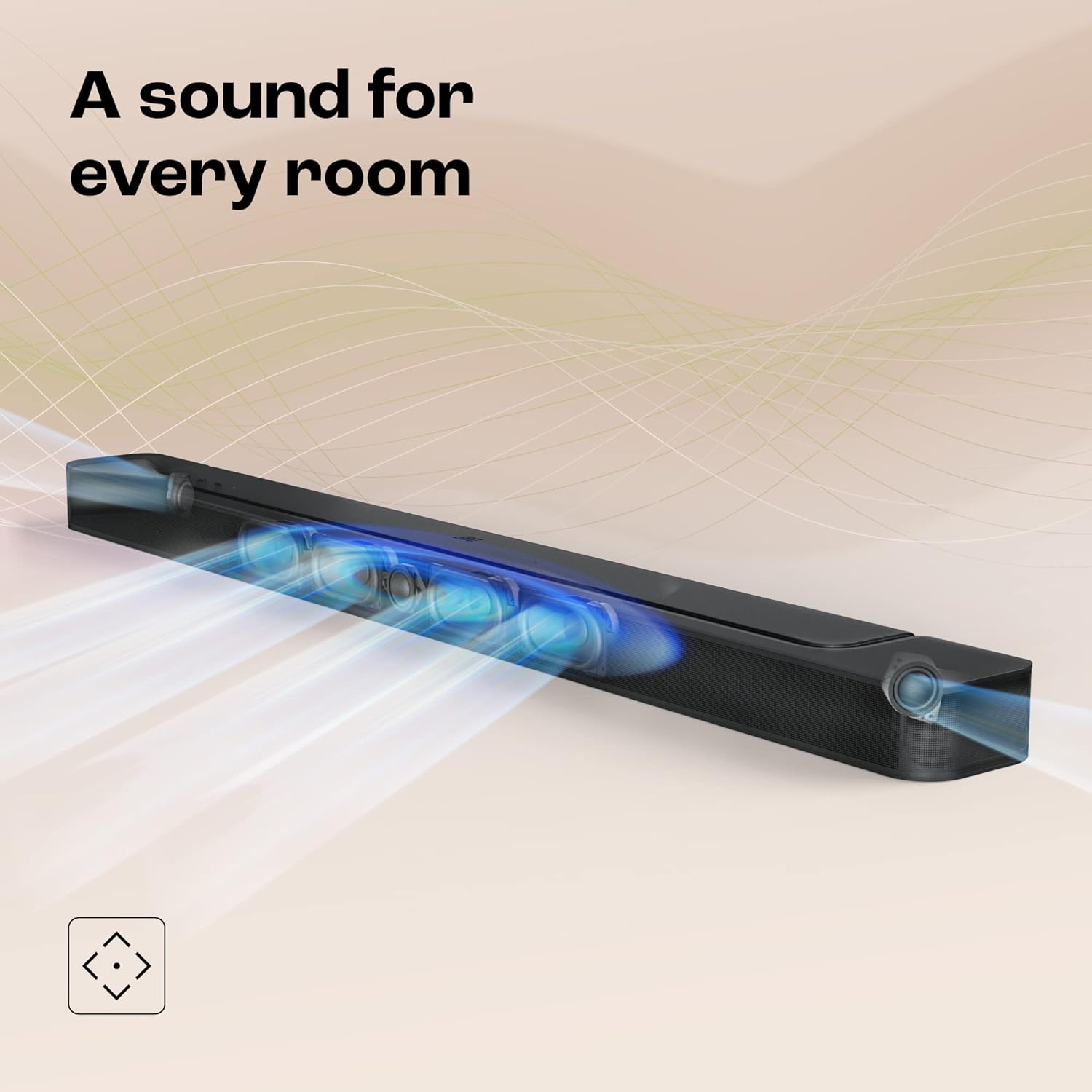

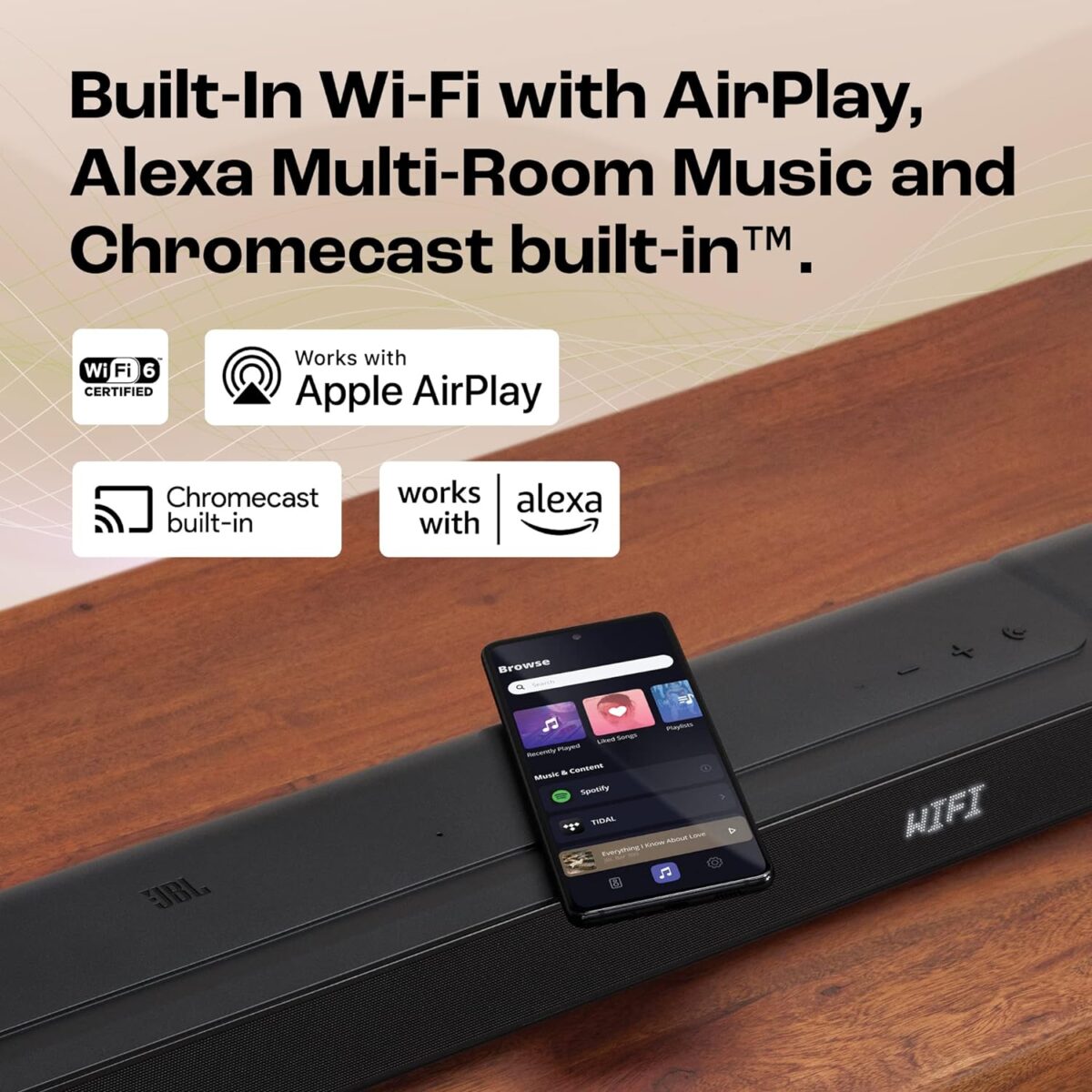

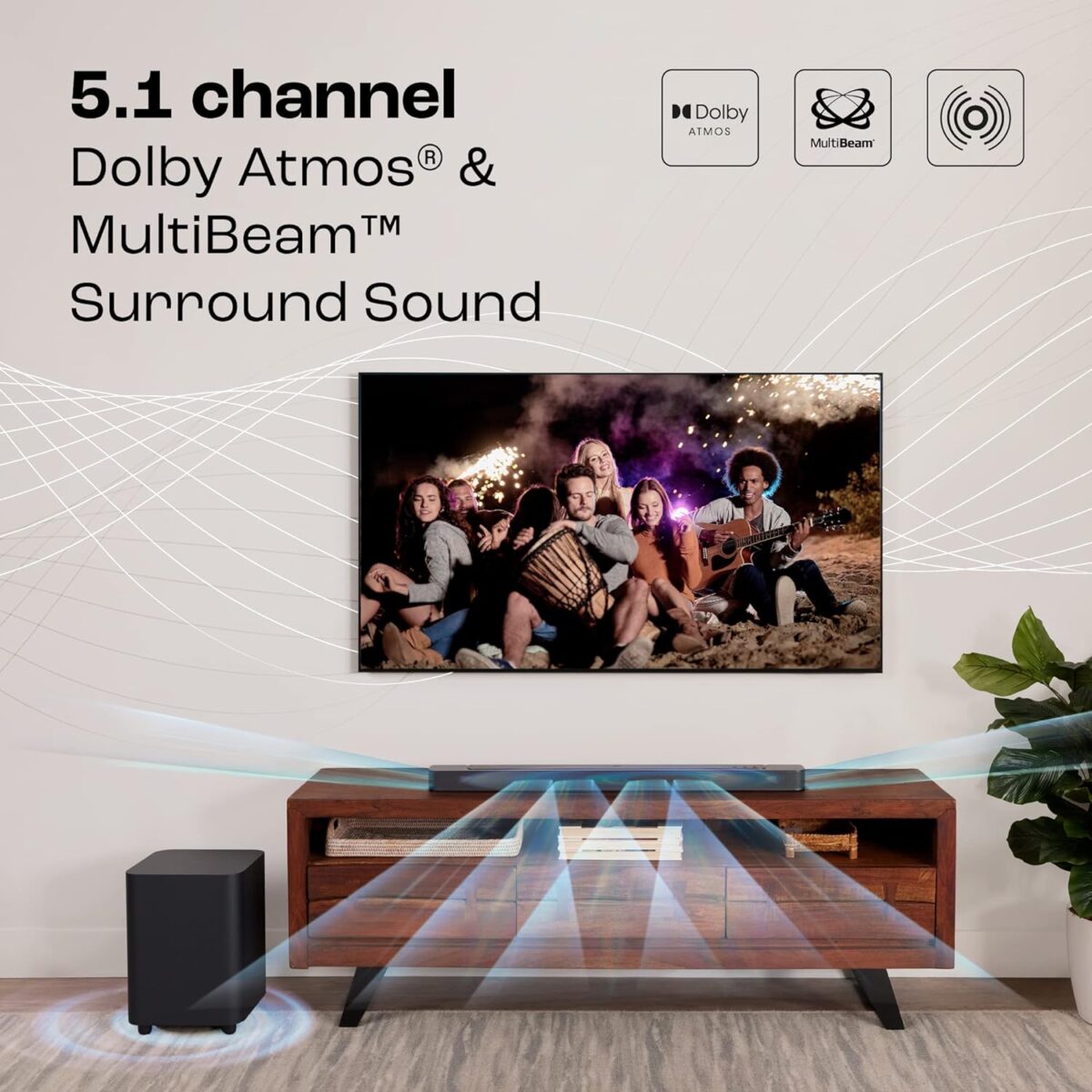

What’s on the menu tonight? Movies, music or gaming? The JBL Bar 500 brings your movies to life with MultiBeam™ and Dolby Atmos® 3D surround sound. While PureVoice technology optimizes voice clarity to ensure you never miss a word. Feel the thrilling bass from the wireless 10″ subwoofer. And with AirPlay, Alexa Multi-Room Music (MRM) and Chromecast built-in™, you’ve got over 300 easy streaming options to choose from, whether you want to dance or you’re ready to relax. Whatever you’re in the mood for, the JBL Bar 500’s got you covered.

• Power supply 100 – 240V AC, ~ 50/60Hz
• Networked standby power < 2.0 W
• Operating temperature 0°C – 45 °C

•  Total speaker power output (Max @THD 1%) 590W
• Soundbar output power (Max @THD 1%) 290W
• Subwoofer output power (Max. @THD 1%) 300 W
• Soundbar transducer 4x (46×90)mm racetrack drivers, 3x 0.75″ (20mm) tweeters
• Subwoofer transducer 10” (260mm)
• Frequency response 35Hz – 20kHz (-6dB)
• Audio inputs 1 Optical, Bluetooth, USB (USB playback is available in US version. For other versions, USB is for Service only.)

• Soundbar dimensions (W x H x D) 1017 x 56 x 103.5 mm / 40’’ x 2.2’’ x 4’’
• Subwoofer dimensions (W x H x D)
  305 x 440.4 x 305 mm / 12″ x 17.3″ x 12″
• Soundbar weight 2.8kg/ 6.2 lbs
• Subwoofer weight 10 kg / 22 lbs
• Packaging dimensions (W x H x D) 1105 x 370 x 475 mm/ 43.5″ x 14.6″ x 18.7″
• Packaging Weight 16.2 kg / 35.6 lbs

• USB port Type A
• USB rating 5V DC, 0.5A
• Supporting file format MP3
• MP3 codec MPEG 1 Layer 2/3, MPEG 2 Layer 3, MPEG 2.5 Layer 3
• MP3 sampling rate 16 – 48 kHz
• MP3 bitrate 80 – 320 kpbs
• Bluetooth version 5.0
• Bluetooth profile A2DP 1.2, AVRCP 1.5
• Bluetooth transmitter frequency range 2400 MHz – 2483.5 MHz
• Bluetooth transmitter power <15 dBm (EIRP)
• Wi-Fi network IEEE 802.11 a/b/g/n/ac/ax (2.4GHz/5GHz)
• 2.4G Wi-Fi transmitter frequency range
  2412 – 2472 MHz (2.4 GHz ISM Band, USA 11 Channels, Europe and others 13 Channels)
• 2.4G Wi-Fi transmitter power
  < 20 dBm (EIRP)
• 5G Wi-Fi transmitter frequency range 5.15 – 5.35GHz, 5.470-5.725GHz, 5.725 – 5.825GHz
• 5G Wi-Fi transmitter power
  5.15-5.25GHz <23dBm, 5.25-5.35GHz & 5.47-5.725GHz <20dBm, 5.725-5.825GHz <14dBm (EIRP)
• 2.4G wireless transmitter frequency range 2406 – 2474MH
• 2.4G wireless transmitter power ＜10dBm (EIRP

• HDMI video input 1
• HDMI video output (with Enhanced Audio Return Channel, eARC) 1
• HDMI HDCP version 2.3
• HDR pass through HDR10, Dolby Vision

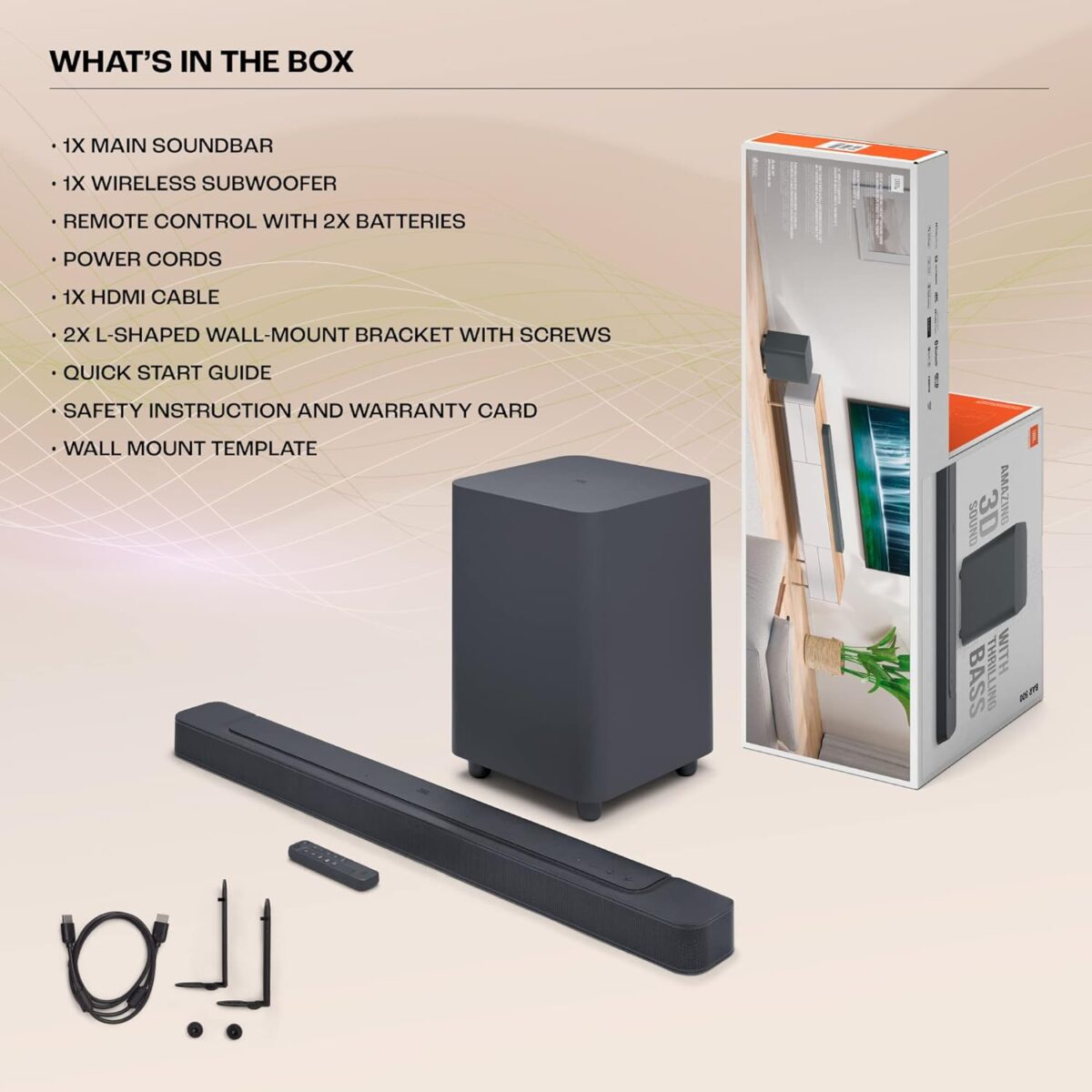

• 1 x Main Soundbar
• 1 x Wireless subwoofer
• Remote control with 2 x batteries
• Power cords (up to 8pcs depending on region SKUs)
• 1 x HDMI cable
• 2 x L-shape wall-mount bracket with screws
• Quick start guide
• Safety Instruction and Warranty Card
• Wall mount template
